Drive Products at Power Electronics

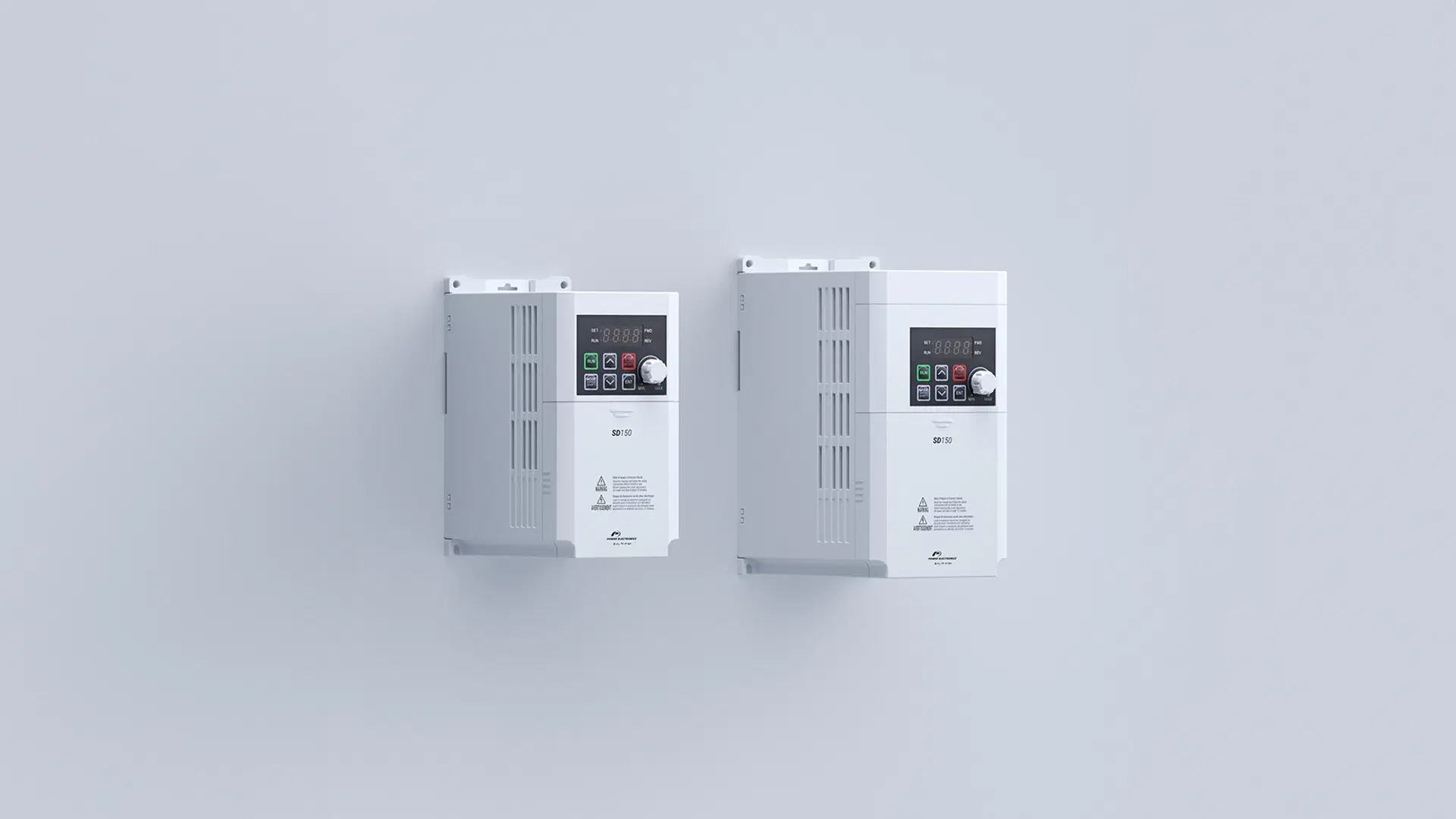

SD150. Perfect for small spaces. Due to its simple operation and compact size, it is perfect for small spaces, allowing the integration of multiple units in the same cubicle.

Voltage range

Voltage range from 200V to 230V

Power

Power range from 0.4kW to 2.2kW

Motor

Drive three-phase motors with single-phase supply

Communications

MODBUS RTU

Brochurearrow_forward

Manuals

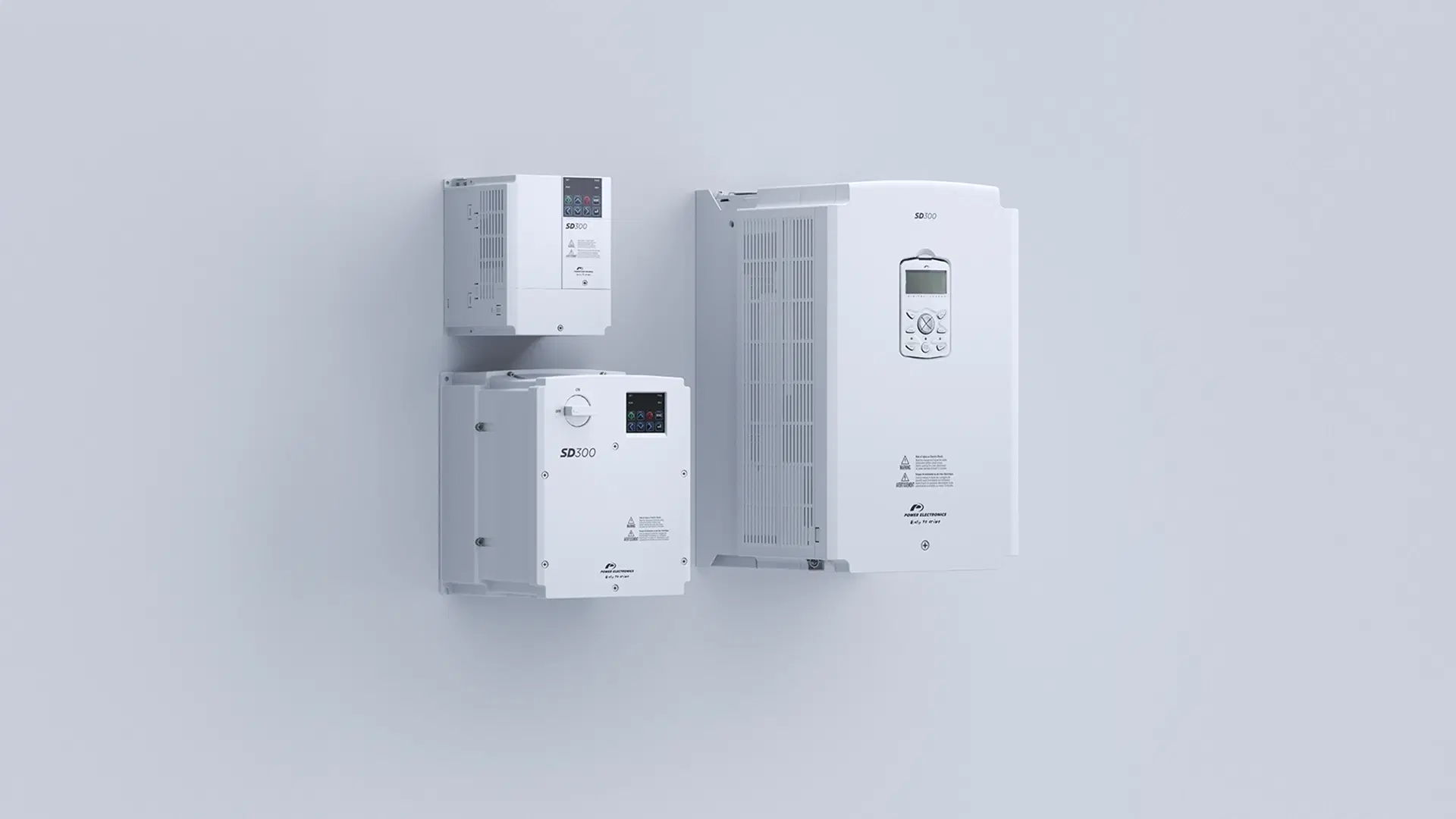

The SD300 is a high-performance variable-speed drive designed for general use. It excels in demanding high-load applications that require high starting torque and accurate control.

Voltage range

Voltage range from 230V to 480V

Power

Power range from 0.4kW to 90kW

Overload

150% overload capacity at 50°C

Protection

Protection degree IP20 and IP66

Brochurearrow_forward

Manuals

Accesories

SD750 is the core of the family. With its compact design, the SD750 series is both the most flexible and extensive, allowing for easy installation, commissioning, and maintenance.

Power

Power range from 1.5kW to 2200kW

Voltage range

Voltage range 380-690Vac

Temperature

Operation ambient temperature -20º to 50ºC

Brochurearrow_forward

Manuals

Accesories

SD750SP helps to minimize your levelized water cost, and for energy-related projects, it secures your investment, whether it’s a new installation or a retrofit.

Power

Power range from 1.5kW to 1000kW

Voltage range DC

From 540Vdc to 1000Vdc

Temperature

Operation ambient temperature -20º to 50ºC

Brochurearrow_forward

Manuals

Accesories

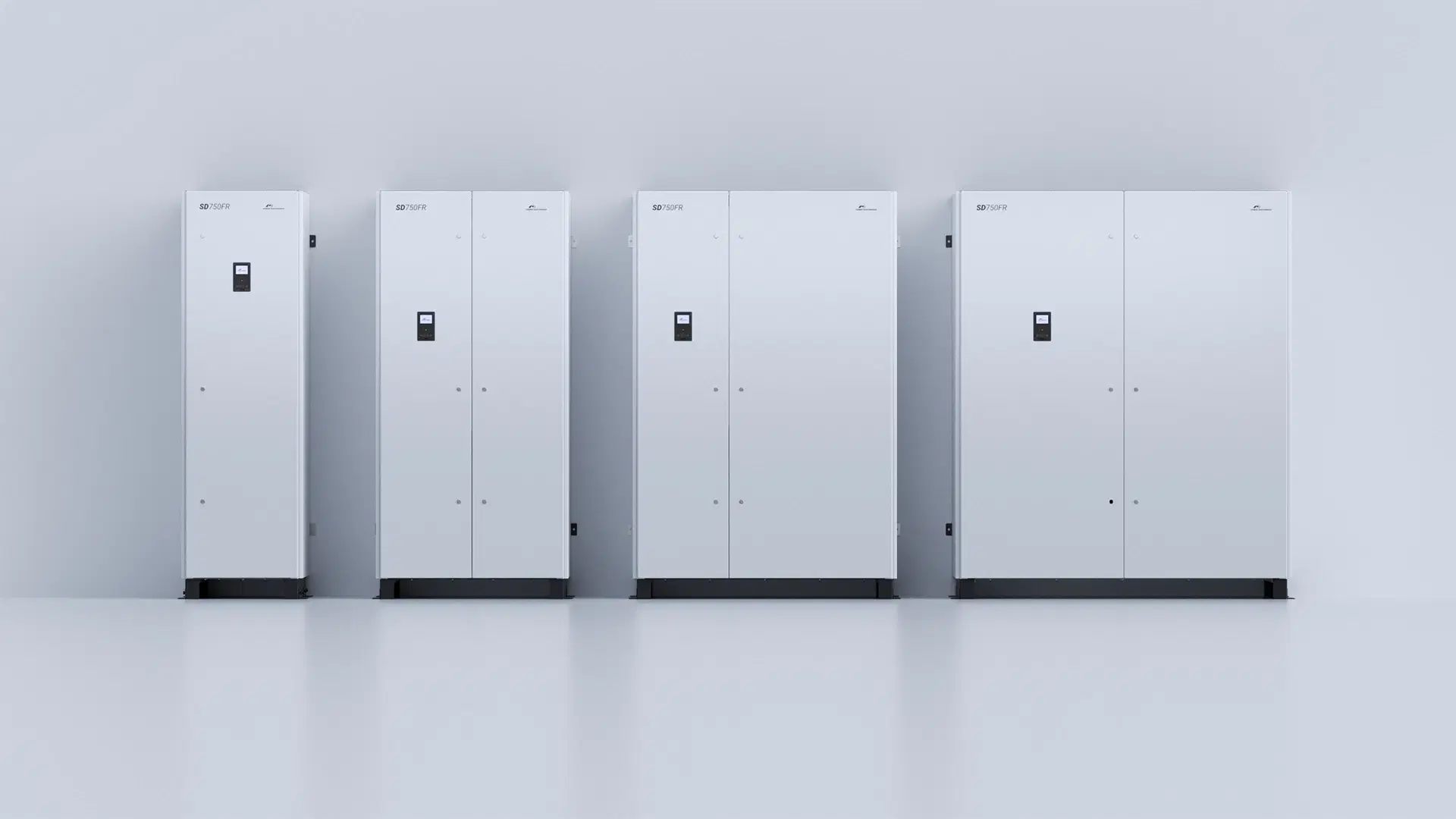

SD750FR can lower your energy costs and improve process performance simultaneously. Using the latest Active Front End technology, they can: regenerate braking energy, maintain THDi < 5%, adjust and maintain constant power factor under any load condition, and stabilize motor voltage even during high input voltage drops.

Power

Power range from 110kW to 2200kW

Voltage range

Voltage range 380-690Vac

Temperature

Operation ambient temperature -20º to 50ºC

Brochurearrow_forward

Manuals

Accesories

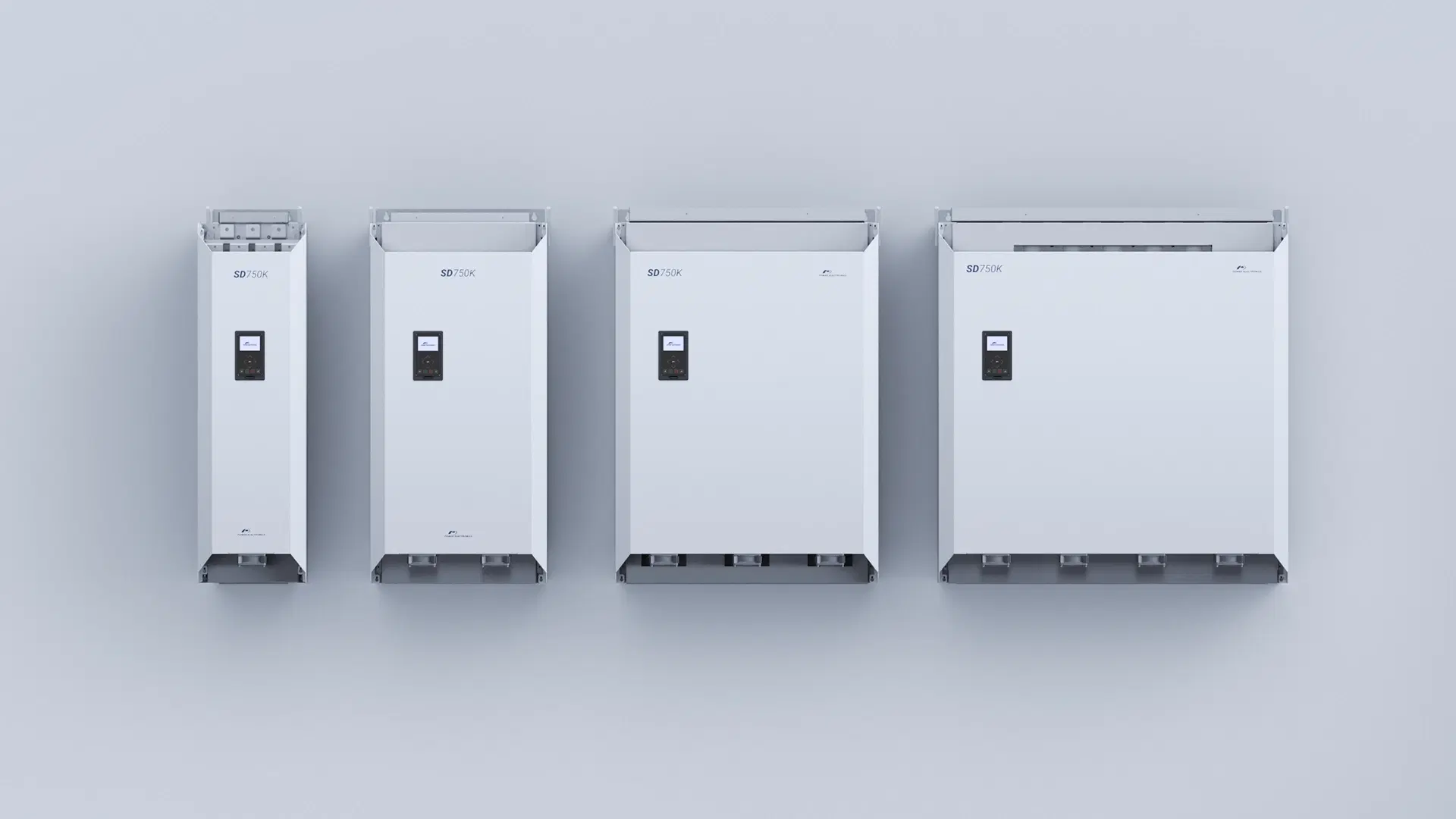

SD750K keeps the advanced family features reducing up to 2.5 times the size. When the space saving is the must, the SD750 Kompakt series with a power density up to 2200kW is your suitable solution.

Power

Power range from 110kW to 2200kW

Voltage range

Voltage range 380-690Vac

Temperature

Operation ambient temperature -20º to 50ºC

Brochurearrow_forward

Manuals

Accesories

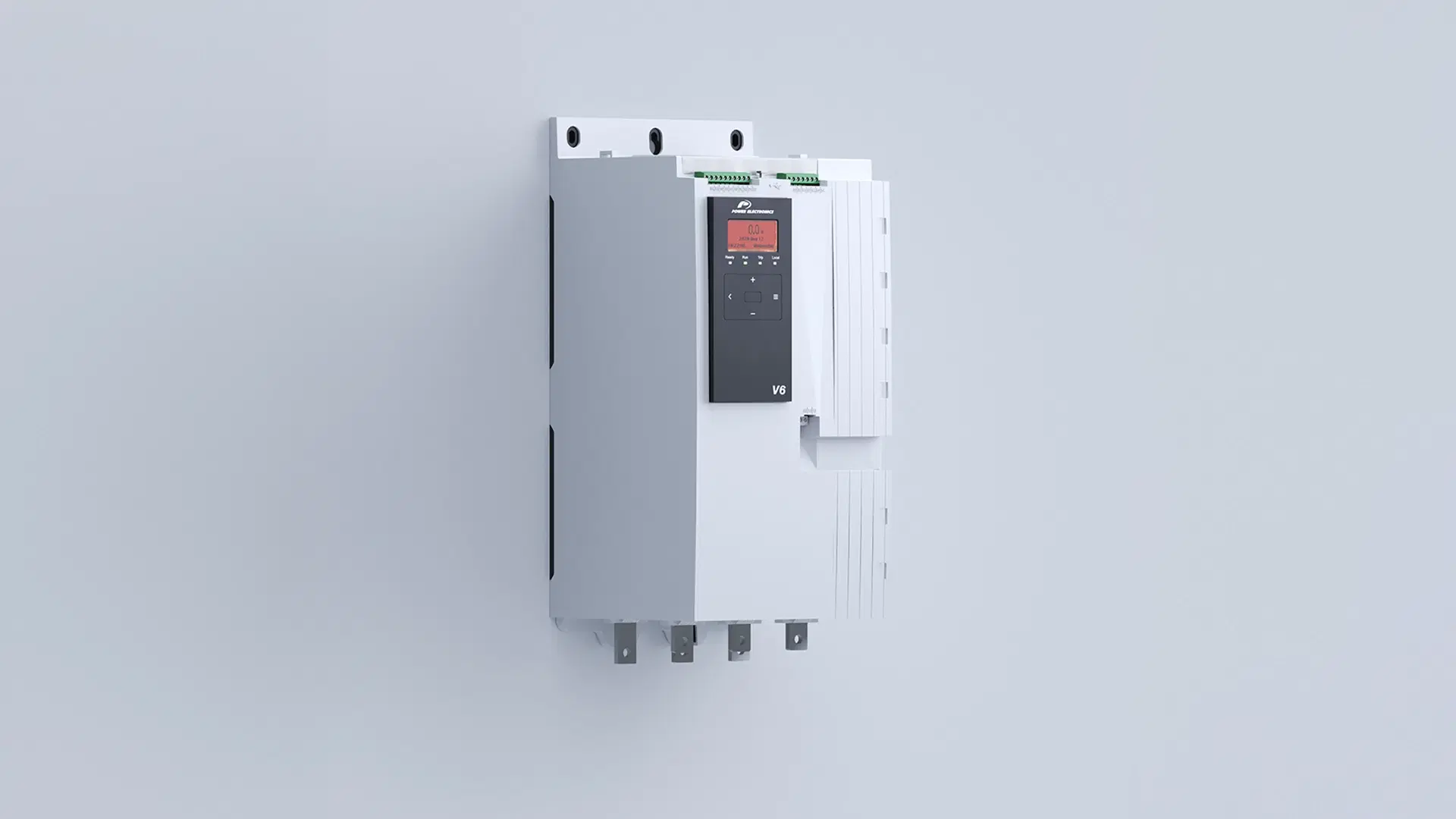

The V6 is manufactured to the highest standards of quality and mechanical robustness, and is supplied with hardware and software designed for continuous operation with the even most demanding of applications.

Voltage range

Voltage range from 200V to 690V

Power

Power range from 7.5kW to 1200kW

Frequency

Suply frequency from 47 to 62 Hz

Protection

Protection degree IP00 and IP20

Brochurearrow_forward

Manuals

FQA. Designed to cancel out harmonics. The FQA is designed to withstand operation up to 50º with dynamic and precise cancelling of harmonics, featuring a voltage range from 380Vac to 525Vac, electronic components sealed to IP54 standards without dust filters, and dynamic control of voltage for stable network performance.

Voltage

From 380 Vac to 525 Vac

Brochurearrow_forward

Manuals

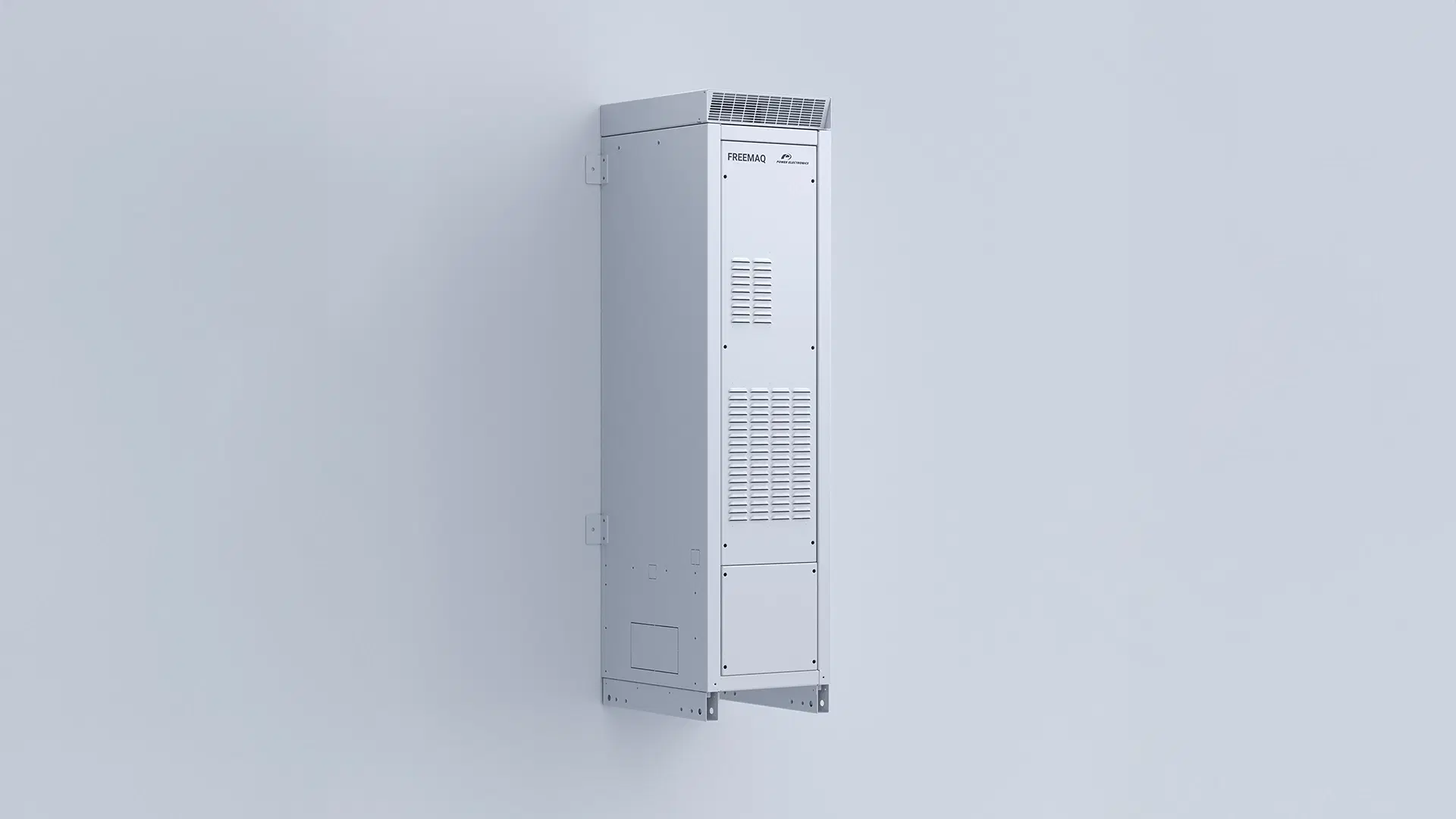

FQP. Offers reliable and robust electronics that are conformally coated to IP54 standards, with a power range from 2.2kW to 110kW, reducing the Total Harmonic Distortion (THDI) to less than 5% according to IEEE519 standards, and equipped with automatic protection for enhanced safety.

Power

From 2.2 kW to 110 kW

Brochurearrow_forward

Manuals
