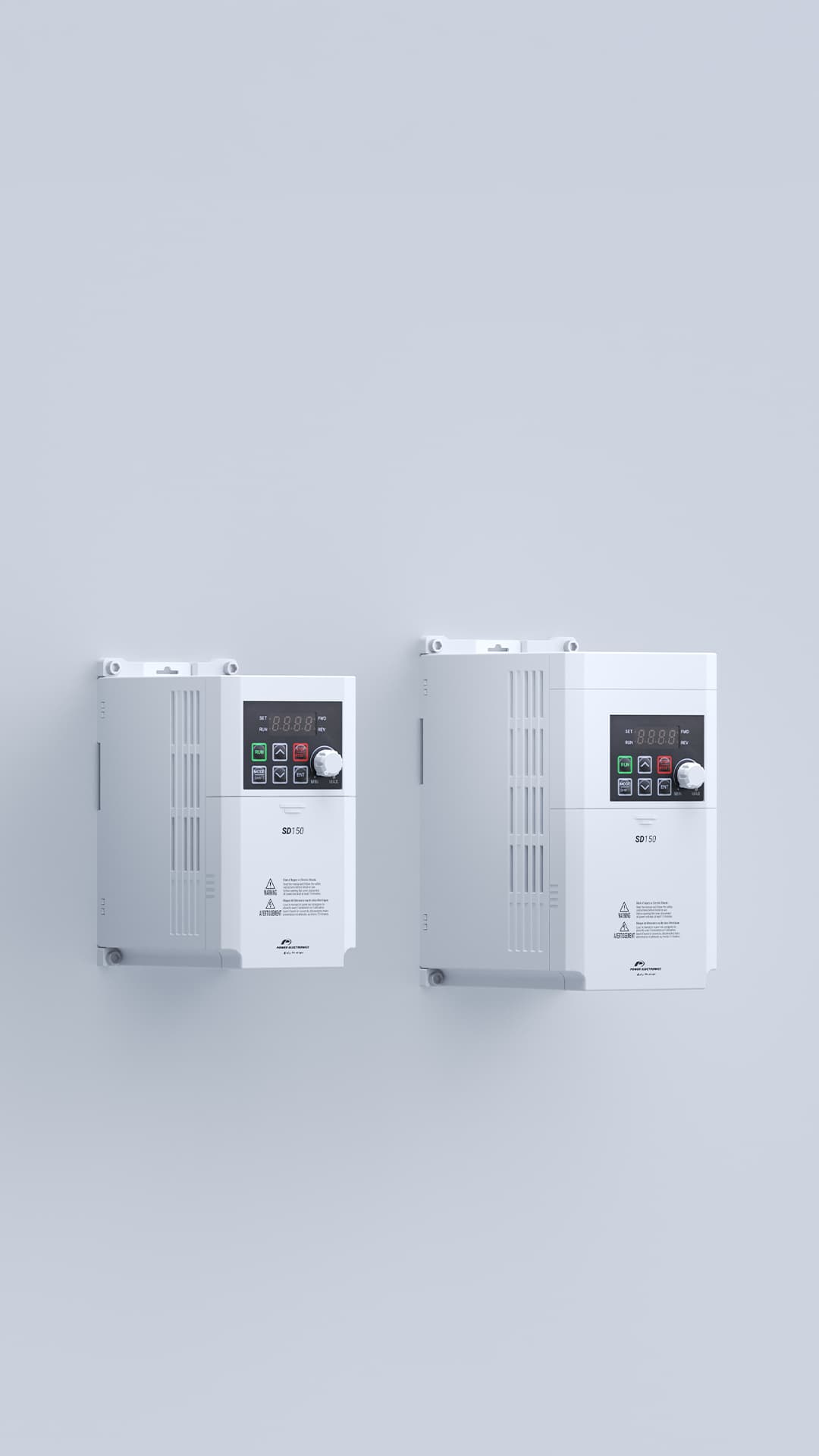

Compact low-voltage variable frequency drive designed for electrical panels and limited spaces. Its simple operation and compact size allow multiple units to be integrated in the same cabinet, optimizing space without sacrificing motor control. Ideal for applications requiring a reliable solution that is easy to install and quick to commission.

Voltage range

Power range

Three-phase motors with a single-phase power supply

Motor

Communications

Compact low-voltage VFD, perfect for control panels and tight spaces.

SD150

Getting Started Manual

Ethernet Board

Expansion Board

Profinet Board

Profibus Board

EthernetCAT Board

Accesories

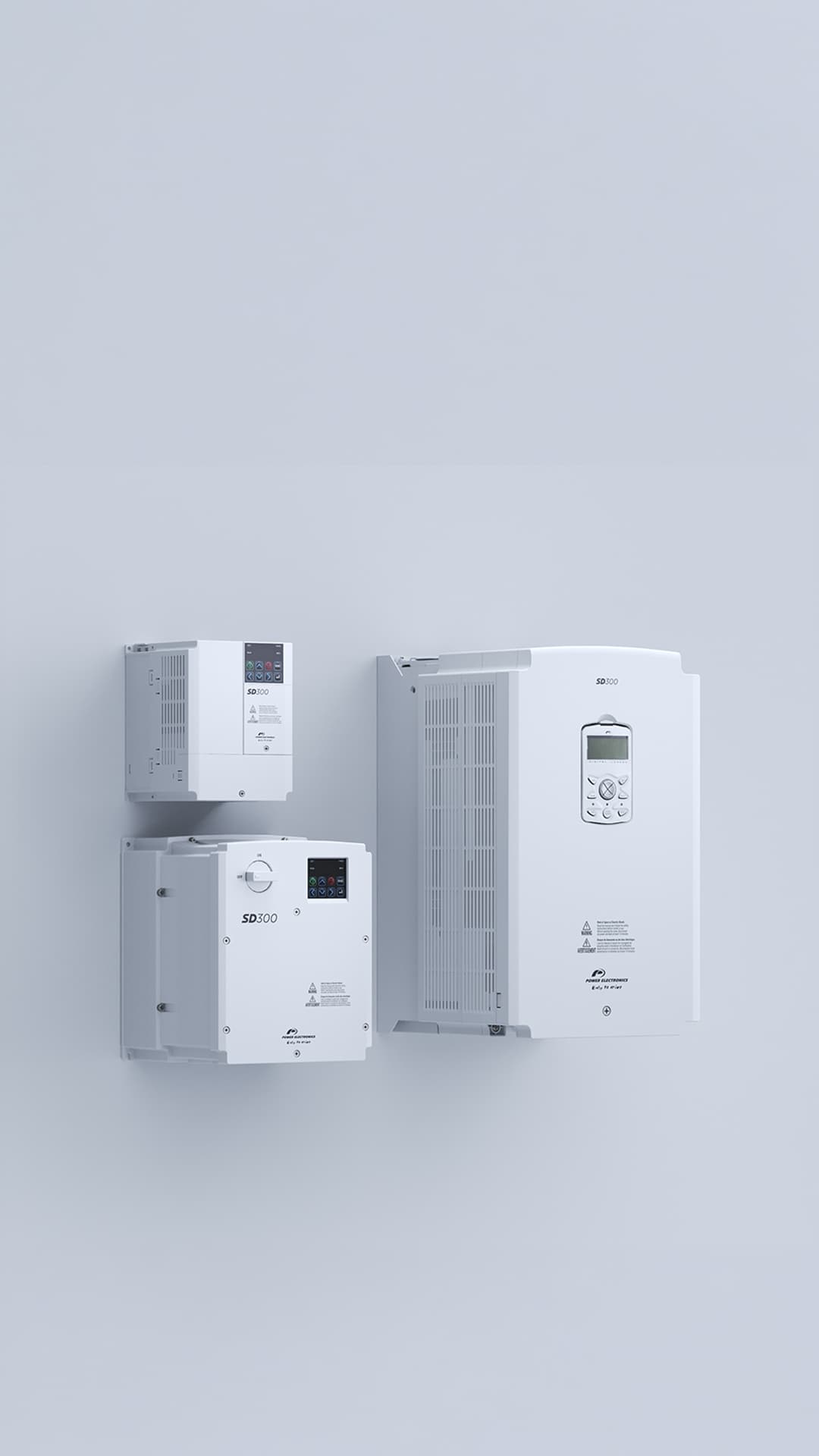

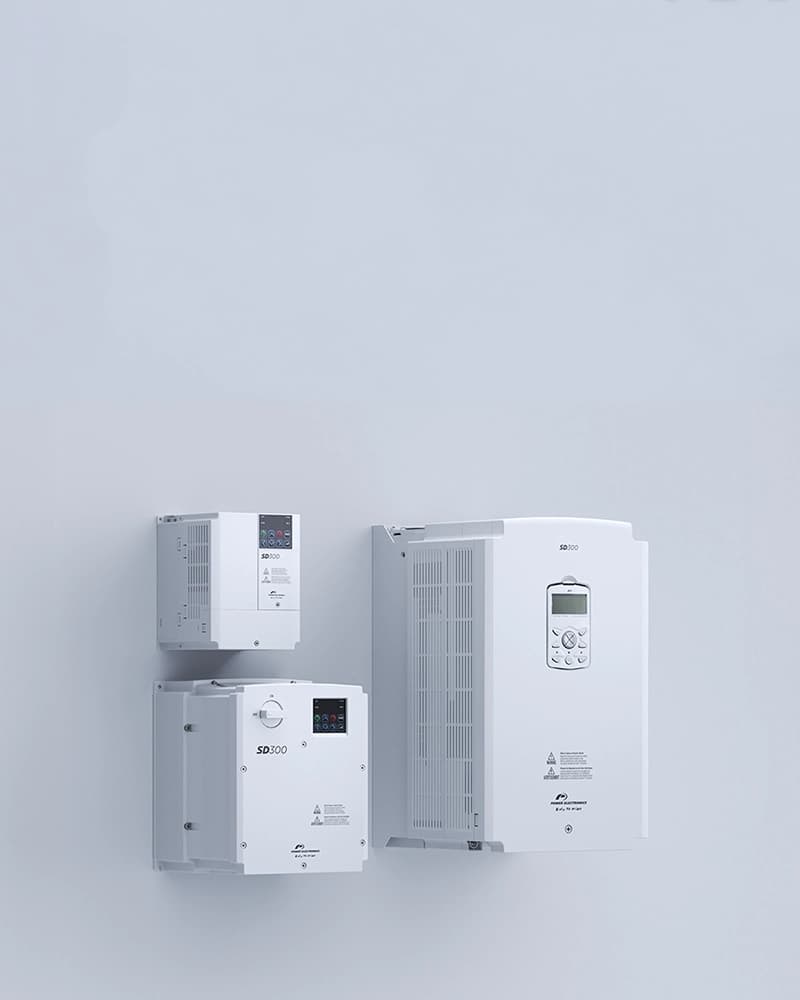

High-performance general-purpose low-voltage variable frequency drive for a wide range of industrial applications. It stands out in demanding environments that require high starting torque and precise control, delivering process stability and higher operating efficiency. A versatile option for those who need robustness, easy integration, and consistent performance.

Overload capacity

Protection ratings

General-purpose low-voltage VFD with high starting torque and precise control.

SD300

Software and Programming

Encoder Board

Analog Boards

Optical Fiber Board

PT100 Board

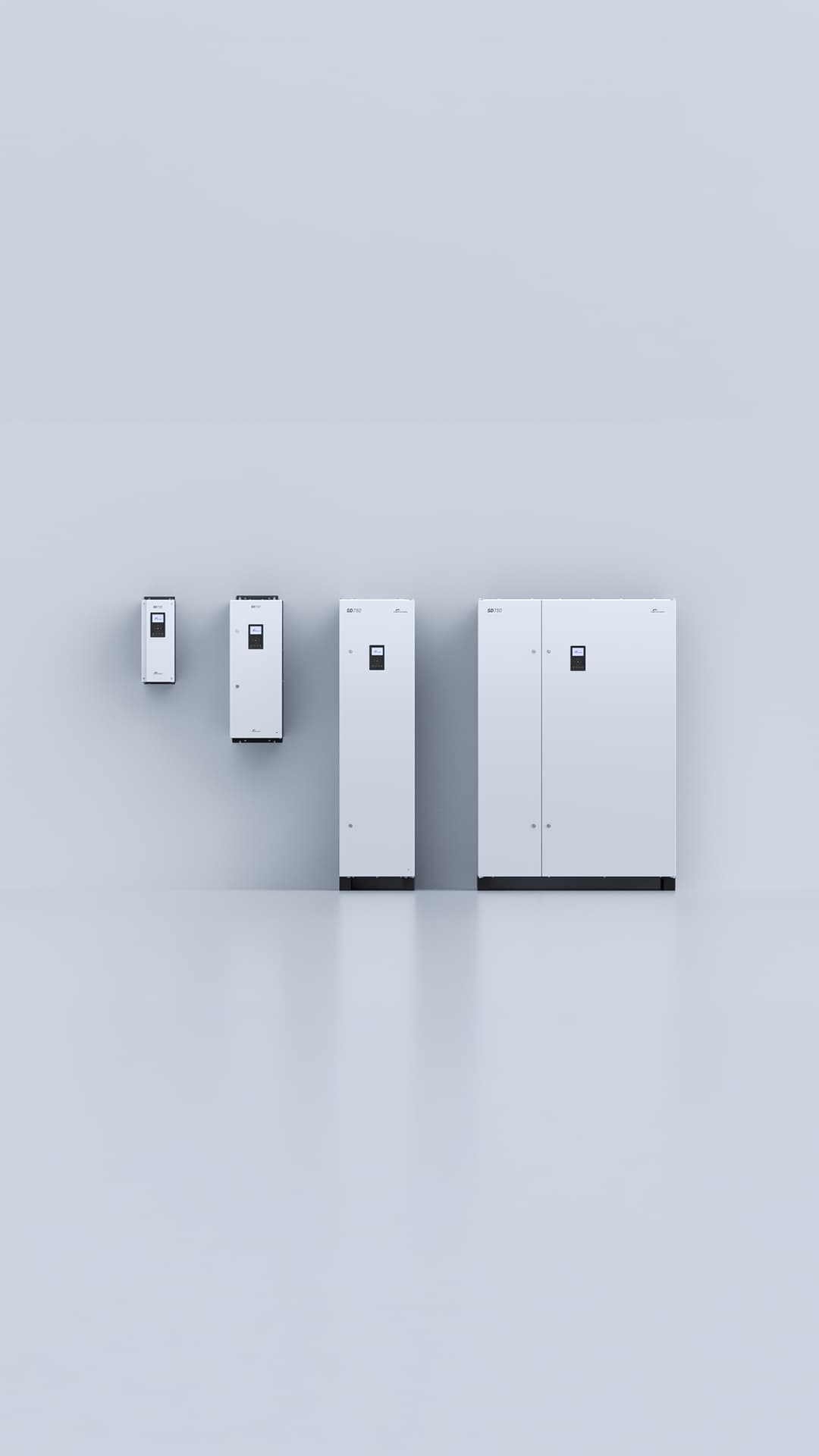

The SD750 is an industrial low-voltage variable frequency drive and the cornerstone of the range. It combines a compact design with a flexible architecture to adapt to different configurations and power requirements. It is designed to simplify installation, commissioning, and maintenance—reducing intervention time and improving process continuity.

Operating temperature

Industrial low-voltage VFD: a flexible platform for high power and demanding applications.

SD750

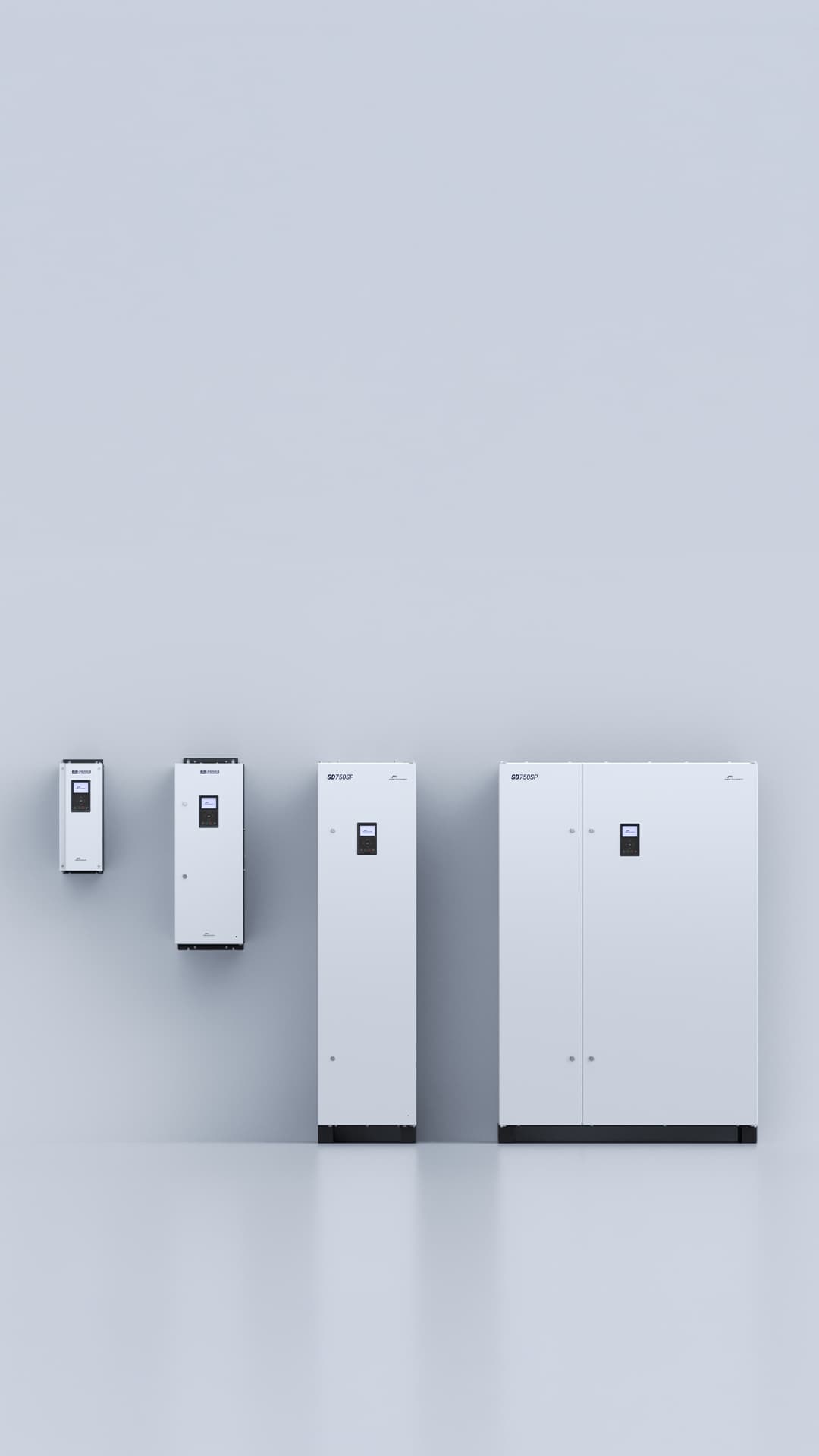

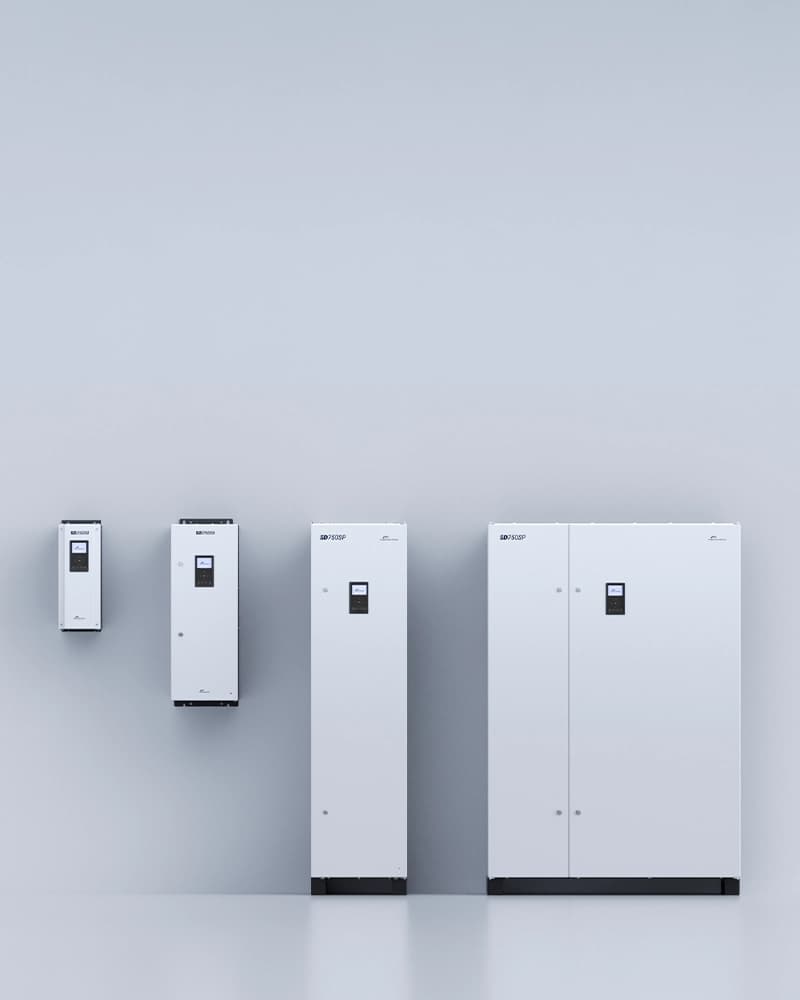

The SD750SP is a low-voltage solar pumping drive designed to optimize pumping performance and improve overall system energy efficiency. It helps minimize the levelized cost of water, providing a robust solution for both new installations and retrofits. An option focused on maximizing the use of available energy and ensuring reliable operation.

DC Voltage range

AC Voltage range

Solar pumping drive: optimizes the cost of water in new installations and in upgrades of existing systems.

SD750SP

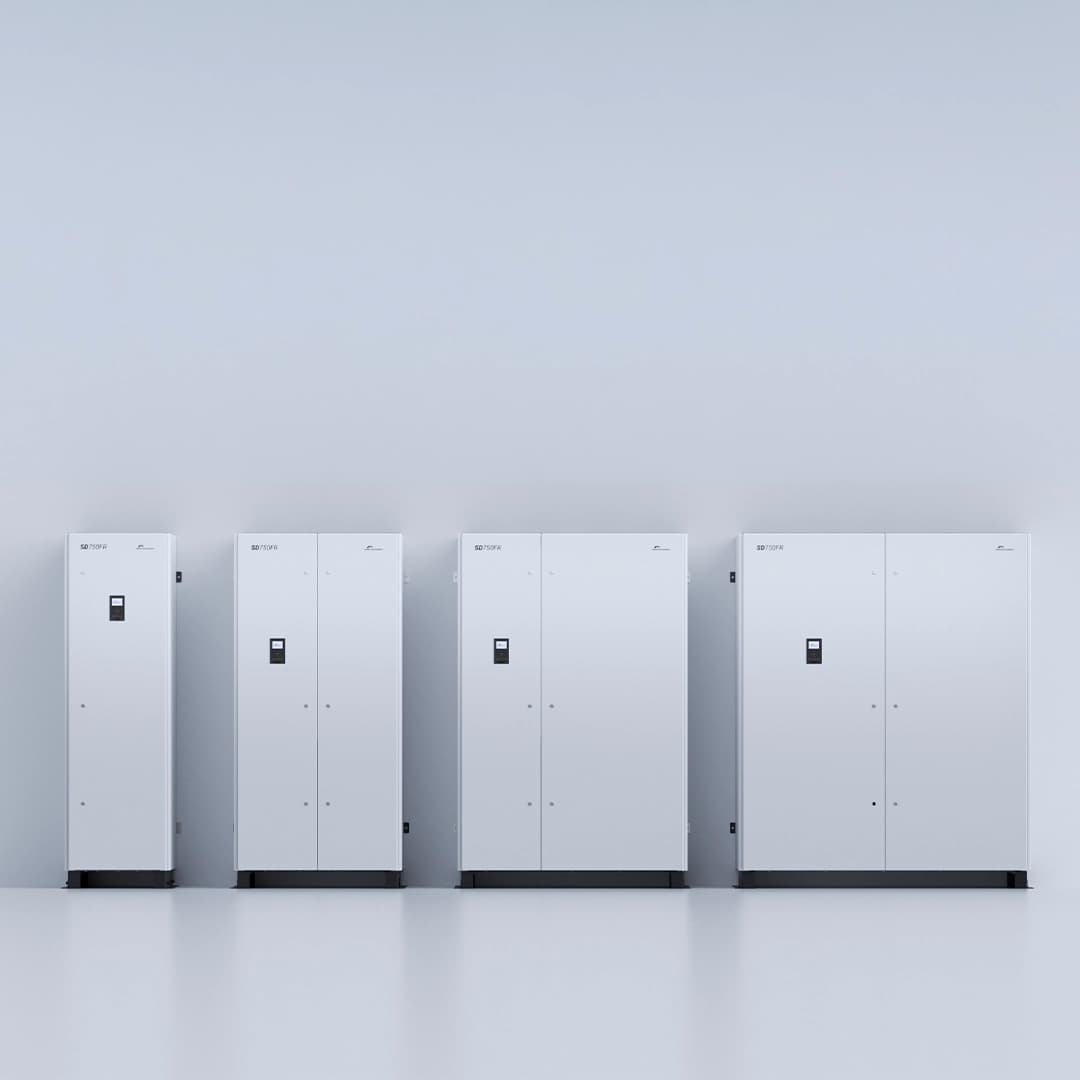

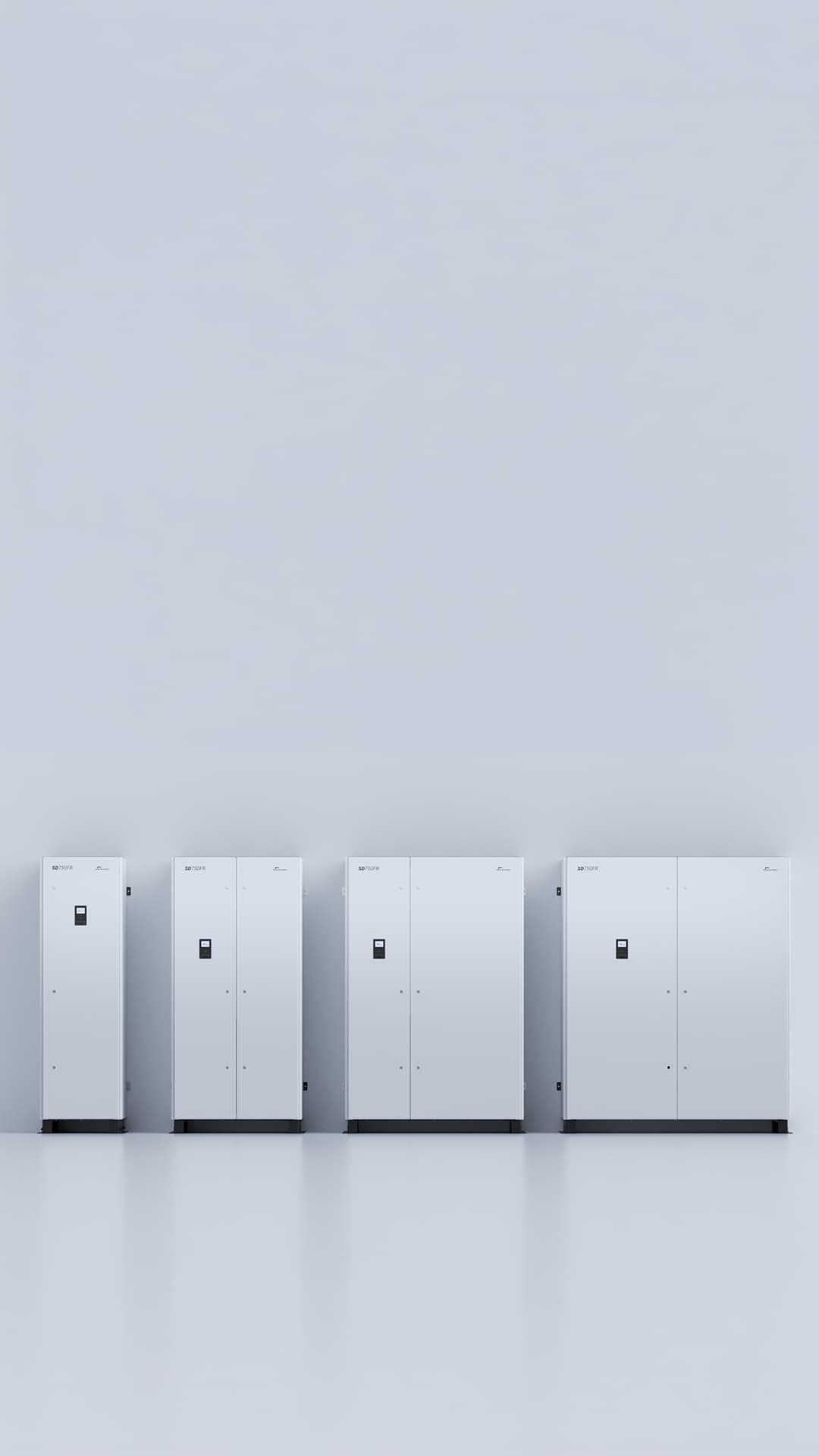

The SD750FR is a low-voltage regenerative drive (Active Front End – AFE) designed for processes where efficiency and power quality are critical. It enables braking energy regeneration, reducing consumption and improving overall system performance. It also helps maintain THD I ≤ 5%, stabilizes the power factor, and supports more stable operation even under variable load conditions.

Regenerative drive (AFE): braking energy, THDi < 5%, and stable power factor.

SD750FR

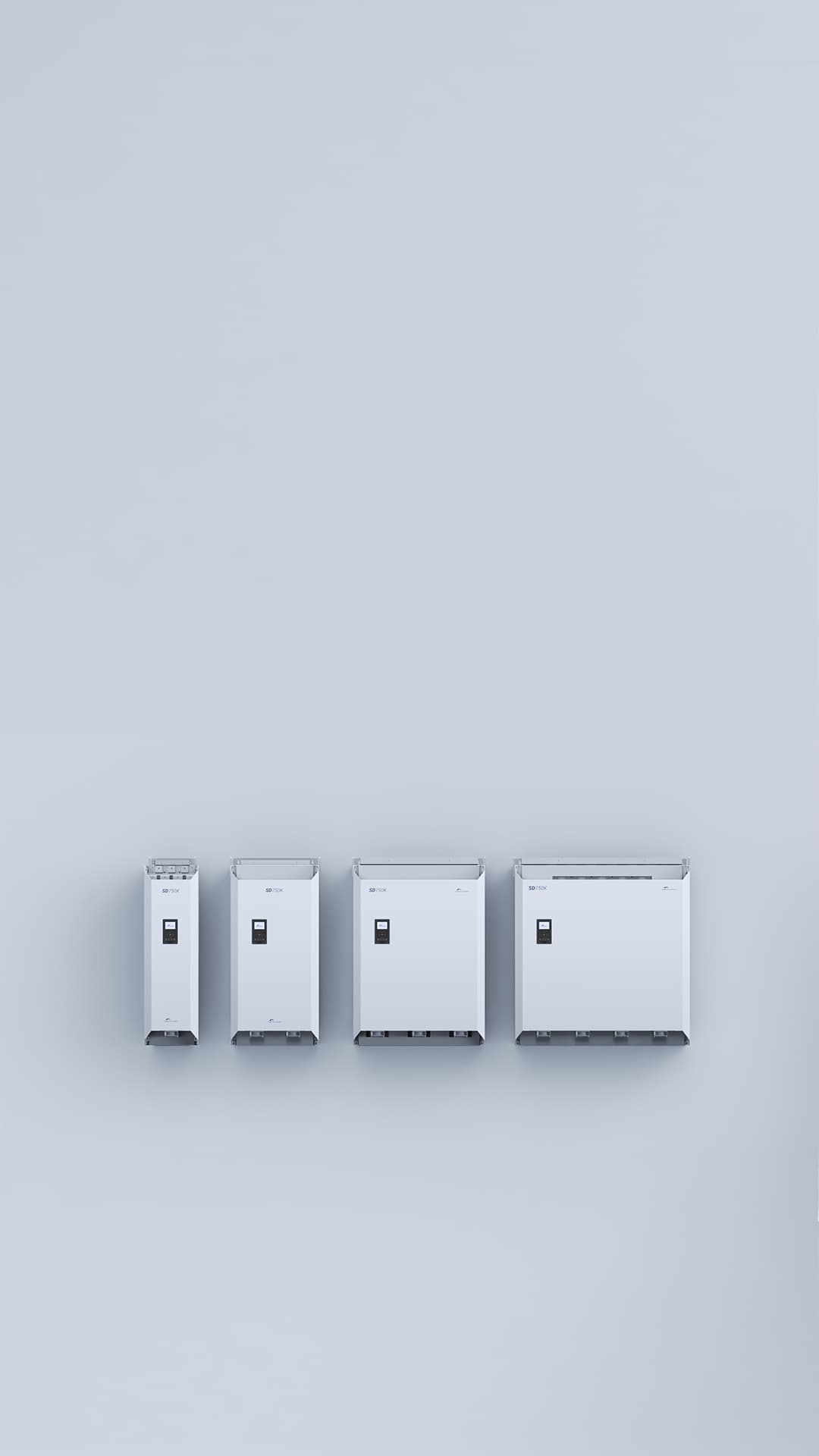

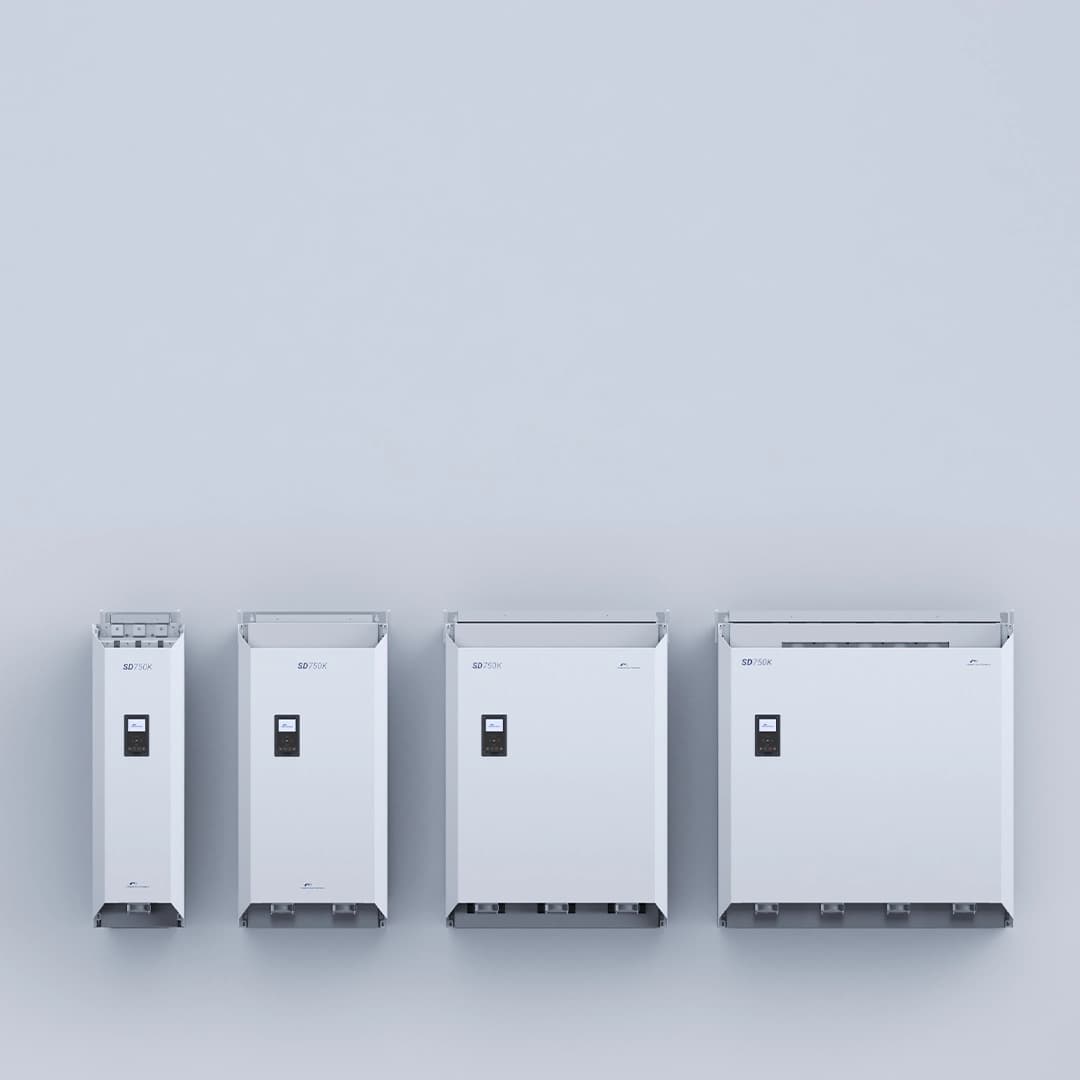

The SD750K (Kompakt) is a compact low-voltage variable frequency drive that retains the range's advanced performance in a significantly reduced footprint. It is aimed at installations where space is critical and high power density is required without compromising capability. An efficient solution that combines performance and compactness for demanding industrial applications.

Compact, high power-density drive for space-critical installations.

SD750K

Devicenet

Profinet

Ethernet I/P

Modbus TCP

Modbus RTU

Communication Buses

Pumping smart card

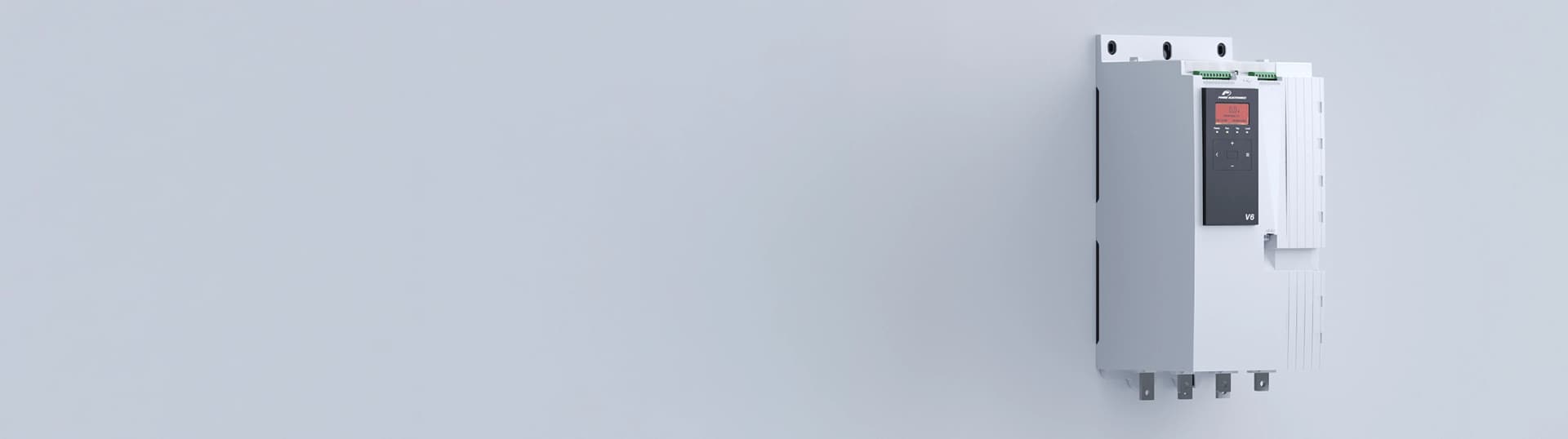

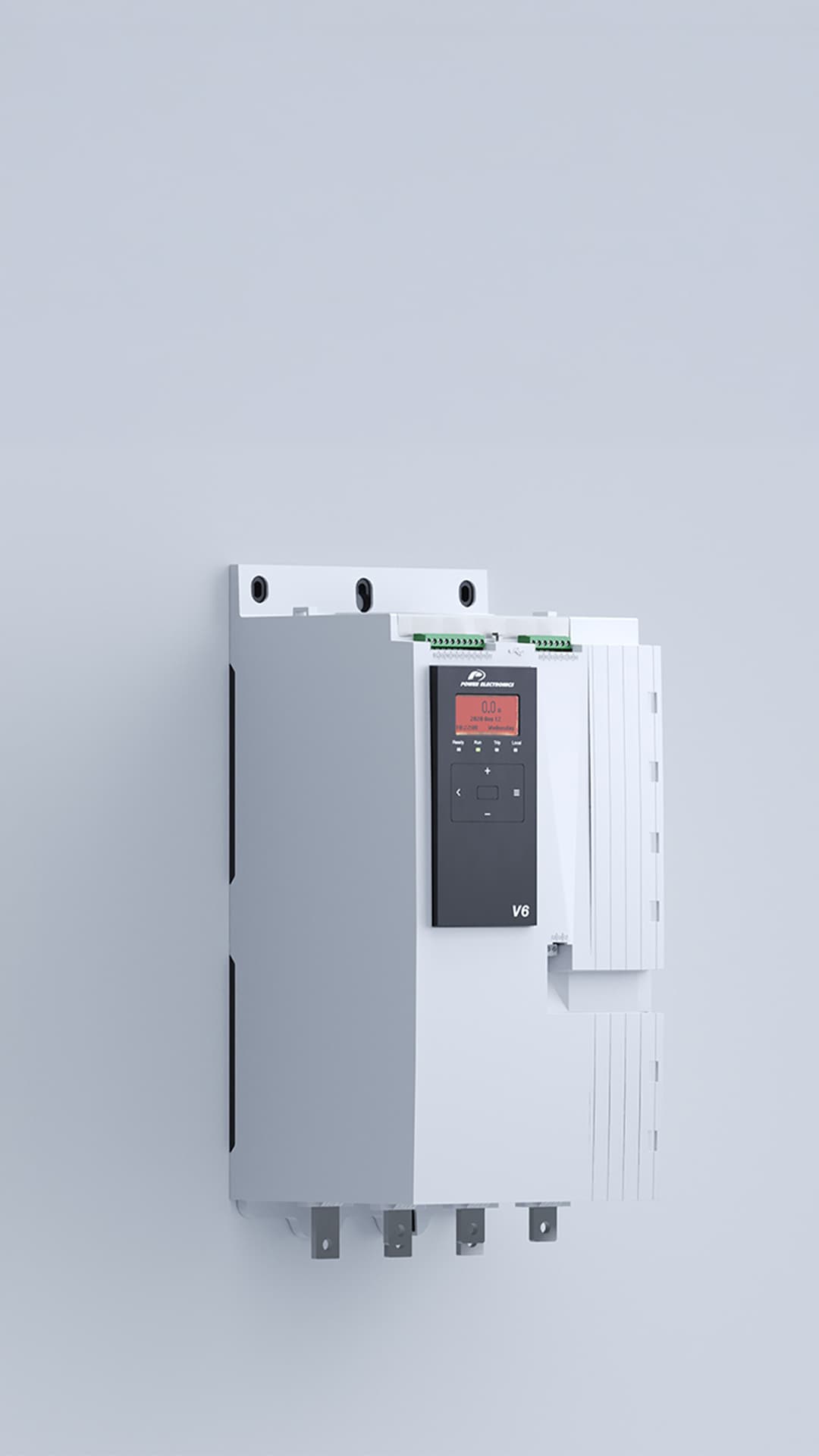

The V6 is an industrial low-voltage soft starter built to operate reliably in demanding environments. Designed to high quality standards and mechanical robustness, it integrates hardware and software ready for continuous operation. A solid choice when controlled starting, stable operation, and easy integration are required.

Supply frequency

Ingress protection ratings

Industrial soft starter for continuous operation and harsh environments.

The FQA is an active harmonic filter designed to improve power quality in low-voltage installations. It provides dynamic, precise harmonic cancellation and helps stabilize the grid through voltage control, even under demanding operating conditions. Its sealed electronics and IP protection enhance equipment reliability in industrial environments where service continuity is critical.

Compensation capacity per phase: 100 A–800 A

Current range

Fully coated and insulated to IP54, without dust filters

Electronics

Active harmonic filter that cancels harmonics in real time, with dynamic compensation and voltaje control.

Freemaq

The FQP is a passive harmonic filter with robust, reliable electronics, designed to reduce distortion and improve power quality in low-voltage applications. It helps lower total harmonic distortion (THD) to below 5% in accordance with IEEE 519, incorporating automatic protection for safer operation. A compact, effective solution for applications that require stable harmonic mitigation.

Compact solution to reduce harmonic distortion

Dimensions

Passive harmonic filter to reduce total harmonic distortion (THD) (≤ 5% per IEEE 519).

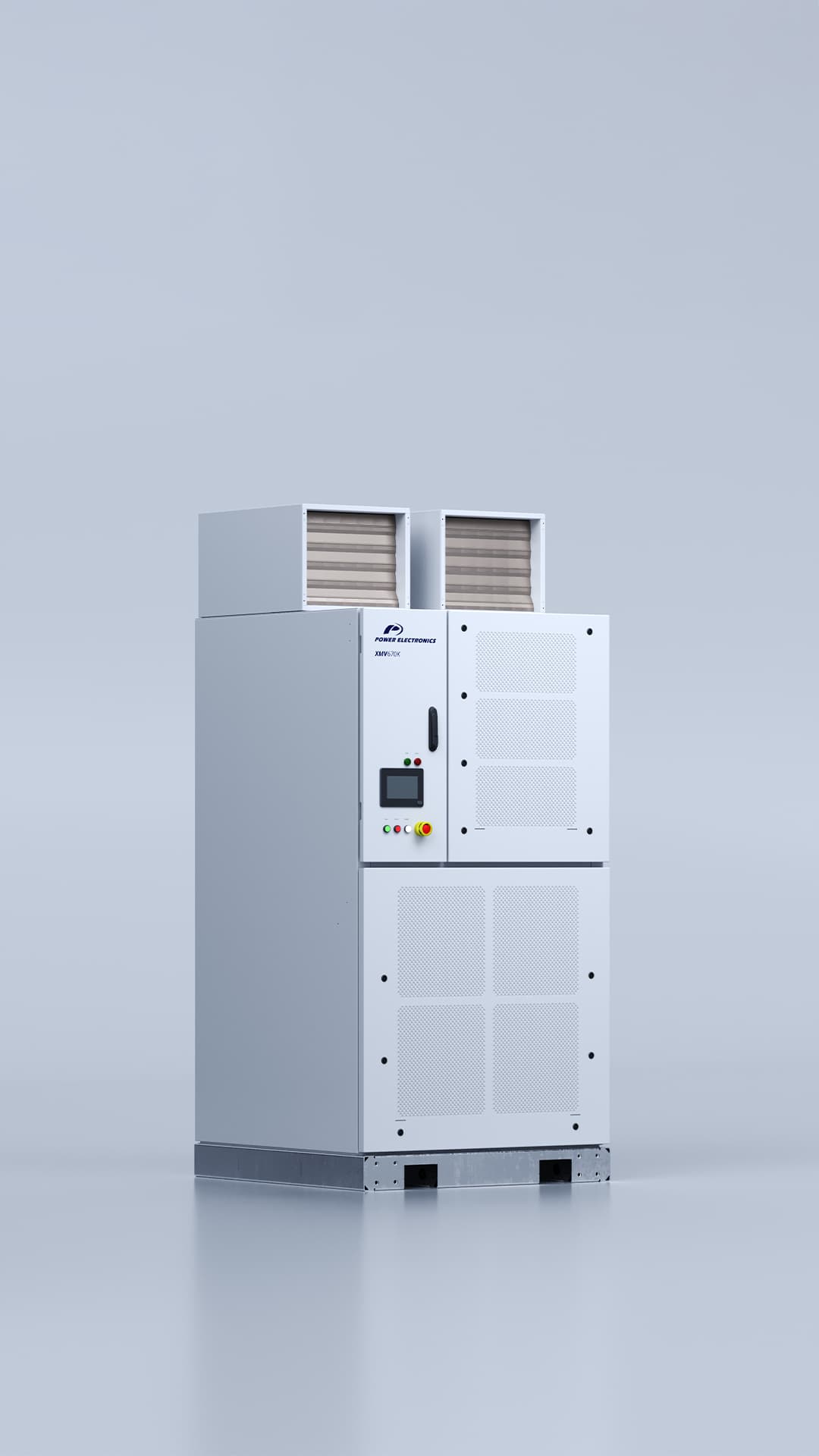

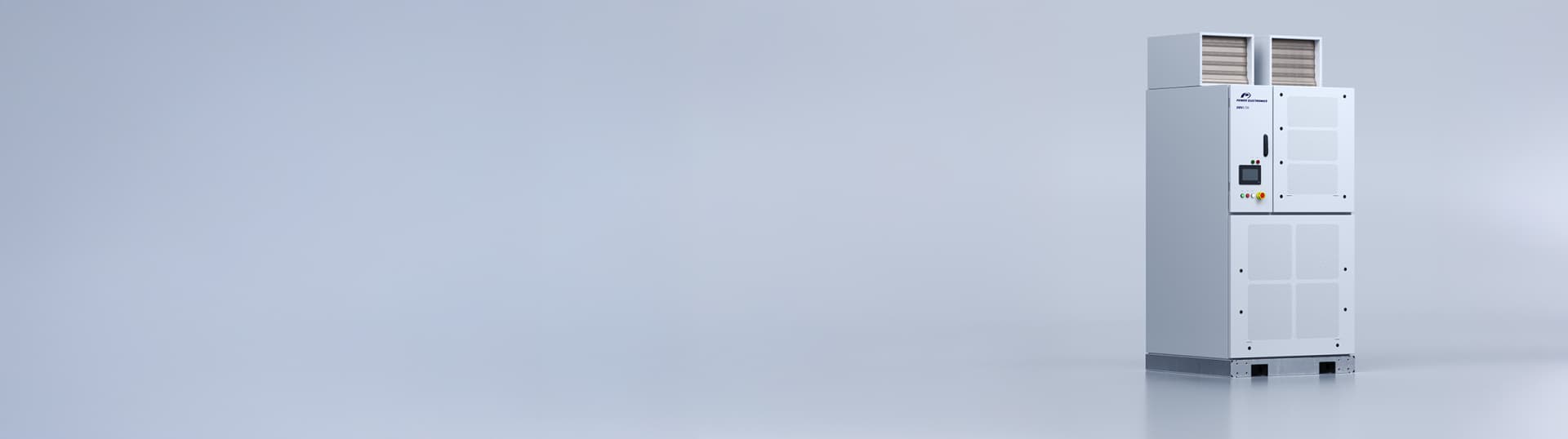

The XMV670 is a medium-voltage (MV) variable frequency drive (VFD) designed to maximize energy efficiency in demanding environments. It combines robustness, reliability, and a multilevel architecture for applications where process continuity is critical. A solution built for intensive operation and stable performance under challenging working conditions.

Datasheet XMV670 BEC

Its compact design and high power density make plant integration easier and help optimize footprint. The multilevel topology is designed for efficient, stable operation, supporting precise motor control and smoother system performance. In addition, it incorporates optimized cooling solutions to sustain performance during extended operating regimes.

Up to 13.8 kV, with the option to power the unit from low voltage

Operation ambient temperature

Medium-voltage (MV) variable frequency drive (VFD), multilevel and compact, designed for 24/7 operation.

XMV670

The XMV660 Outdoor is an outdoor medium-voltage VFD developed to operate without an electrical room. It features proven modular, multilevel MV technology, delivering robustness and reliability in installations where environmental conditions are a key factor.

Designed to maintain performance under harsh weather conditions, its configuration minimizes the impact of dust and particles during operation, reinforcing service continuity. The ventilation and air filtration system is intended to protect the equipment and ensure stable operation in challenging scenarios. A solution especially suited for outdoor projects that require medium voltage with high availability.

Outdoor medium-voltage variable frequency drive, designed to operate without an electrical room and perform in demanding environments.

The XMV660 is the most innovative and rugged outdoor medium voltage drive, designed for 24/7 operation in the most demanding environments.

XMV660 Outdoor

The multistep quasi-sinusoidal output voltage produced by the cascaded H-bridge power modules is low in dV/dt and supplies sinusoidal current to the motor.

XMV660 Indoor

The VS70 is a medium-voltage soft starter designed to deliver maximum reliability and safety in industrial applications. Its modular architecture enables flexible configuration, making it easier to adapt to specific installation and process requirements.

The VS70 is focused on controlled starting for demanding loads, optimizing motor behavior from the very beginning of the process. It integrates operation and signaling elements designed for intensive industrial use, enabling clear equipment status management and intuitive handling. Its approach combines robustness, operational safety, and flexible integration for medium-voltage projects.

Medium-voltage soft starter with a modular architecture, designed to maximize safety and control.
